BMF-J2A Electrical Fire Monitoring Panel (Console Type)


Technical Specifications Fully compliant with the Chinese National Standard GB14287.1-2014 for Electrical Fire Monitoring Equipment. Modular design ensures higher system efficiency and reliability. Dual-network architecture combining industrial Ethernet and CAN bus delivers: High reliability Real-time performance Large-capacity data communication Graphical interface featuring professional low-voltage distribution system diagrams enables intuitive monitoring and operation. System capacity: 6 CAN communication loops 64 detector addresses per loop 8 monitoring points per detector Total capacity: 3,072 points Multi-protocol interfaces: RS485/422 CAN bus Gigabit Ethernet Compatible with fire control room graphic displays Supports integration with fire protection IoT systems Backup power supply with: Automatic mains/battery switching Intelligent battery charge/discharge management Black box function stores up to 10,000 alarm and fault records. Certified for compatibility with Leader Huaxin's graphic display devices.


Accessories


  • Describe
  • Technical parameter
    • Fully compliant with the Chinese National Standard GB14287.1-2014 for Electrical Fire Monitoring Equipment.

    • Modular design ensures higher system efficiency and reliability.

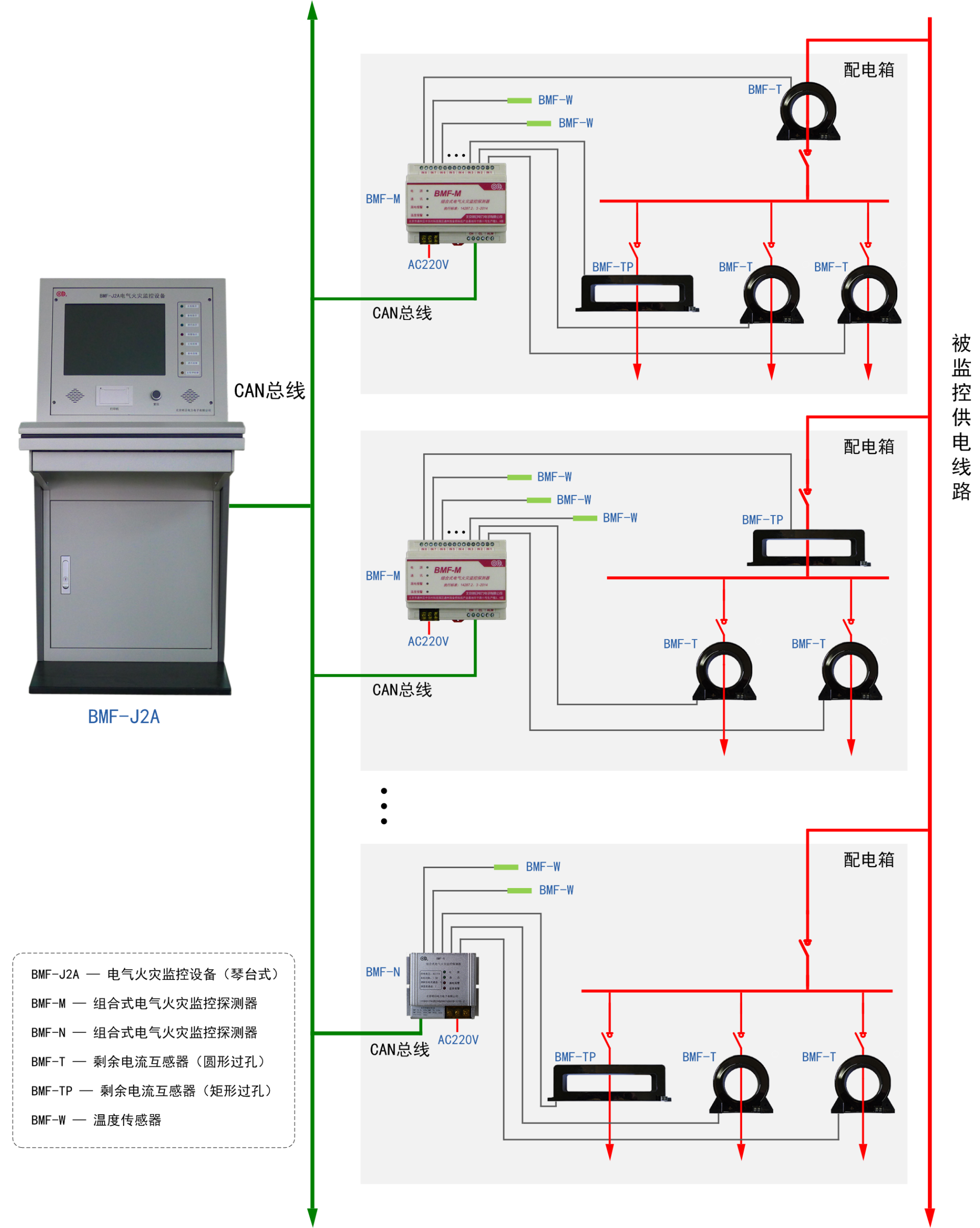

    • Dual-network architecture combining industrial Ethernet and CAN bus delivers:

      • High reliability

      • Real-time performance

      • Large-capacity data communication

    • Graphical interface featuring professional low-voltage distribution system diagrams enables intuitive monitoring and operation.

    • System capacity:

      • 6 CAN communication loops

      • 64 detector addresses per loop

      • 8 monitoring points per detector

      • Total capacity: 3,072 points

    • Multi-protocol interfaces:

      • RS485/422

      • CAN bus

      • Gigabit Ethernet

      • Compatible with fire control room graphic displays

      • Supports integration with fire protection IoT systems

    • Backup power supply with:

      • Automatic mains/battery switching

      • Intelligent battery charge/discharge management

    • Black box function stores up to 10,000 alarm and fault records.

    • Certified for compatibility with Leader Huaxin's graphic display devices.



    执行标准 GB14287.1-2014
    额定电源电压 AC 220V/ 50Hz
    备电电源 DC24V 12V/12Ah(两节串联)
    设备功耗 150W
    系统通讯总线 CAN 总线
    CAN 总线回路数 6 路
    环境温度 0℃~ 40℃
    相对湿度 ≤ 95%RH(40℃ ±2℃)
    外壳防护等级 IP30

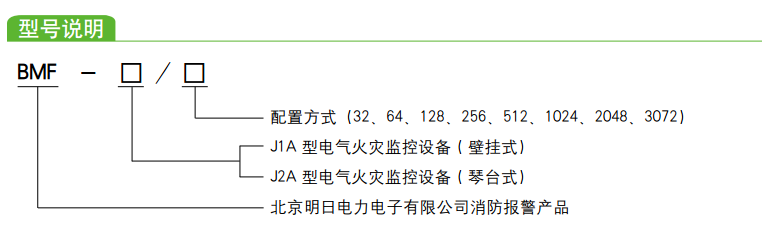

    配置点数 256、512、1024、2048、最大 3072 个点
    外形尺寸(长 × 宽 × 高) 565mm×1000mm×1202mm







Related products



应急照明集中电源


应急照明分配电装置

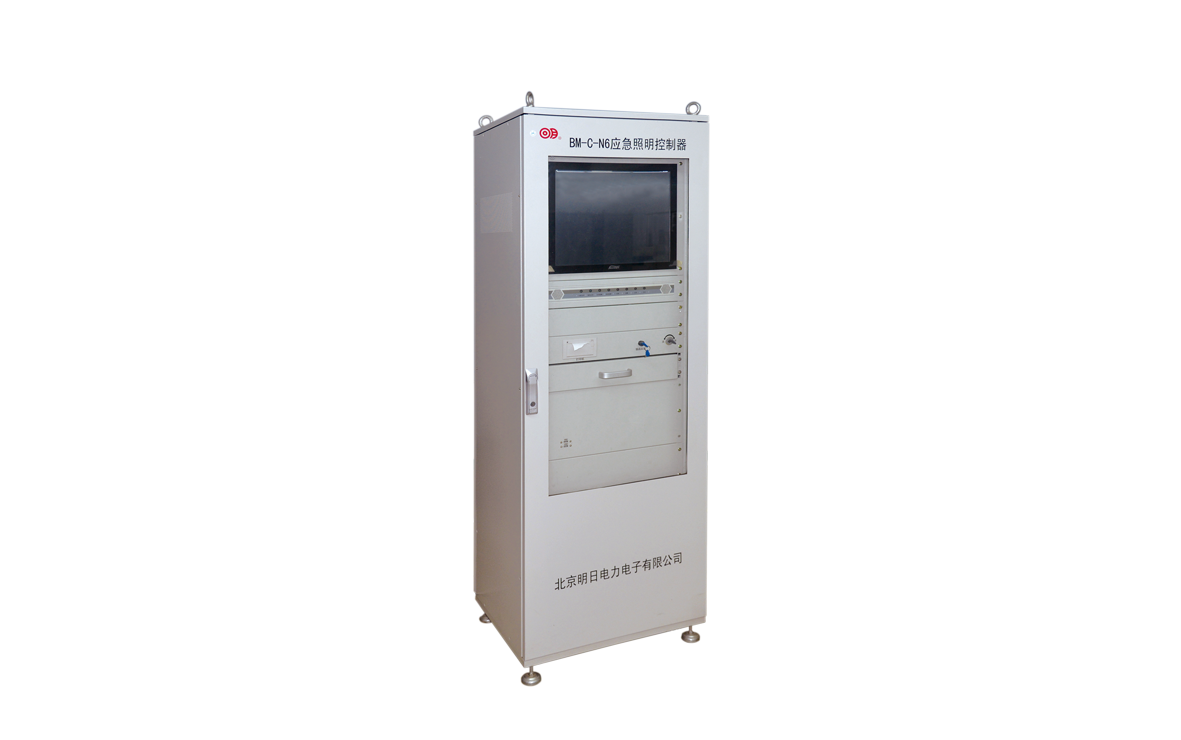

应急照明控制器
